Model : PBG - 400 (2.0)
A Bursting Strength Tester measures the maximum pressure required to rupture materials such as paper, fabric, or corrugated board using a rubber diaphragm. This multi-directional strength test assesses how much internal pressure the material can withstand before bursting, making it essential for quality control in packaging, textile, and paper manufacturing.
In the booming packaging and paper industries in Sri Lanka, ensuring that the paper, paperboard, and other raw materials are strong and do not break easily is of paramount importance. The improper equipment for testing would likely put the manufacturers at risk of producing inferior goods, which may not come up to the desired level of quality. It could lead to flawed packaging solutions, damaging a product in transit, disappointing customers, and costly return orders. To avoid such challenges, Sri Lankan manufacturers must invest in quality and accurate burst testing machines.
It is a high-tech tester that measures the burst strength of packaging and cardboard materials. It simulates the pressure that is built at the time of shipping, handling, and transportation with the help of this gadget, so manufacturers can well assess the material's capabilities to withstand stress before taking it into real-life usages. BS testing machines enable one to find out the pressure level a material can withstand without bursting, which will give the reliability of the product and materials in packaging and shipping.
Presto provides products with a focus on customers that help manufacturers reduce mistakes, improve product quality, and increase profitability. Their instruments come out to be quite capable of handling the requirements put into continuous industrial use and are a long-term investment for any business seeking an aggressive advantage in the marketplace.
Presto Instruments is a leading manufacturer and supplier of Bursting Strength Tester Genie 2.0 in Sri Lanka. For the best price, contact us for a quote or call now!
| Capacity | 40 kg/cm² |
| Display | LED (Digital) |
| Accuracy | ± 1% within 10% to 90% of entire range as per IS: 1828 with master gauge |
| Least Count/Resolution | 0.1Kg/cm2 |
| Power | 220V, Single phase, 50 Hz |
| Test fluid | Glycerinabout 98% purified (lab grade) |
| Rate of fluid displacement | 95 cc/minute |
| Motor | 1/4 HP Single Phase , 1440 rpm |
| Test Range | 1Kg / cm to 38 Kg / cm2 |
Highlights:
| Memory(to hold test value) | Up to 9 test values |
| Peak Hold Facility | Yes |
| Safety Switch | Yes |
| Material | Mild Steel |
| Finish | Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 540x 600x 450 mm |
1. Automatic Burst Factor Calculation: Calculates burst factor in paper automatically, enhancing efficiency.
2. Single Push Button Operation: Simplifies testing process for ease of use and convenience.
3. Microprocessor-Based Display: Ensures accurate test results with precision.
4. Peak Hold Facility: Stores maximum test values in memory for reference and analysis.
5. Memory Storage: Holds up to 9 test readings for convenient data retrieval.
6. Highly Accurate Results: Provides precise results under multidirectional force, ensuring reliability.
7. Strong Gripping Clamps: Secures test specimens firmly in place for consistent testing.
8. Grooved Test Specimen Holder: Prevents slippage and maintains specimen integrity during testing.
9. No-Slippage Design: Ensures uniform tightening of specimen with operating wheel, minimizing errors.
10. Bright LED Display: Provides clear visibility of test parameters and results.
11. Feather Touch Controls: Delivers responsive and intuitive operation.
12. Calibration Lock & Key Feature: Ensures calibration integrity and prevents unauthorized adjustments.
The Genie 2.0 Bursting Strength Tester is reliable and easy to use. It gives accurate results every time. Great support from the team!
Neeraj Dabral
Best bursting strength tester supplier in UAE
Varun
A BS tester (short for burst strength tester) is a machine that checks how much pressure a material like paper, cardboard, or fabric can handle before it breaks. It’s commonly used in industries like packaging and printing to make sure the material won’t fail when it’s being handled or shipped.
A BS testing machine works by holding a sample tightly in place and then applying pressure from below. It keeps increasing the pressure until the sample bursts. The machine then tells you how much force it took to break it. It’s a simple but very useful way to test the strength of packaging materials.
The bursting strength tester price can range widely depending on the model. A basic manual machine might be quite affordable, while a high-end digital tester will cost more. It’s best to talk to a bursting strength tester supplier to get a quote that matches your needs and budget.
There are several good bursting strength tester manufacturers and suppliers out there. Presto Instruments offer reliable machines, proper certifications, and helpful customer service. Don’t just go with the cheapest option — a good burst tester should last you years and give you consistent results.
Yes, there are. Some are manual and simple to use, while others are digital and come with extra features like automatic results, data saving, and touchscreens. A bursting strength tester digital version can be great if you’re doing a lot of testing and need fast, accurate results.
In Sri Lanka's developing packaging industry, the necessity for robust packaging solutions cannot be overlooked and is always critical. Increased demand for high-quality packaged goods across the globe also calls upon businesses to consider the handling and shipping toughness of packaging.
Read More
Durability and compression strength play a significant role in industries dealing with packaging, where the materials used are boxes and paperboard. The use of low-quality testing tools will always hold back Sri Lankan industries from making quality packaging materials, through which the product damage would increase while transporting and storing.
Read More
This is an apparatus that aims to represent the forces of impact that are derived when a product has dropped. The drop tester measures the capability of a product to withstand shock and impact, which is extremely important for packaging design and material selection. The machine usually drops its products from a certain height to a hard surface and records any derived damage or deformation as a result, to determine the impact resistance of the product.
Read More

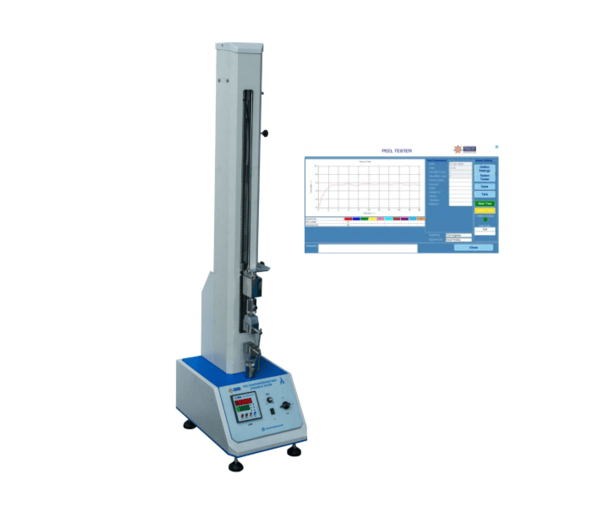

The Peel Tester Computerised Cum Digital is a high-precision testing machine used to measure the peel, bond, and adhesion strength of laminated, sealed, or bonded materials. Designed with advanced digital controls and computer-based software, it provides accurate, consistent, and real-time data for quality assurance.
Read More
Durability is key to competitive packaging and labeling industries such as Sri Lanka's. Companies run the risk of delivering products with smudged or faded labels by not using a Scuff Resistance Tester. Product presentation and, thereby, brand reputation would suffer due to this. A disappointed customer will reduce shelf appeal, and subsequently, affect sales.
Read More
In the packaging, plastics, and textiles industries, the right surface friction is very important. Without a Coefficient of Friction (COF) Tester in Sri Lanka, especially a digital model, manufacturers in Sri Lanka risk having products that are inconsistent, of lower quality control, and do not meet international standards.
Read More
The RCT/FCT/Edge Crush Tester is a reliable tool designed to measure the crush strength of cardboard boxes and packaging containers. This instrument assesses the crushing resistance in units of Kg per unit length, providing essential data for ensuring packaging durability.
Read More

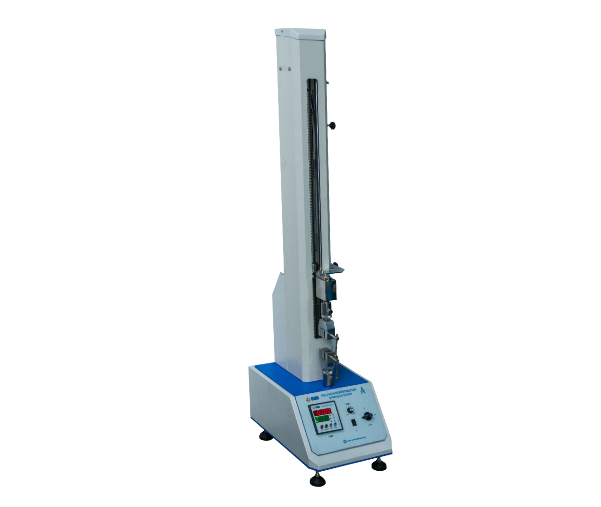

A precision digital instrument designed to measure the peel, bond, and seal strength of adhesives, laminates, films, tapes, and packaging materials. It provides accurate, repeatable force measurements with user-friendly controls, ideal for quality control, R&D, and material performance testing.
