Model : Burst Genie 4.0
Bursting Strength Tester –Pneumatic Burst genie 4.0 Computerized is a consistent tool to indicate the Strength and performance of material like paper boards, paper, uneven boards , boxes , solid fiber boards, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Bursting Strength Tester –Pneumatic Burst genie 4.0 Computerized is a consistent tool to indicate the Strength and performance of material like paper boards, paper, uneven boards , boxes , solid fiber boards, Foils, sheets, etc. PRESTO Bursting Strength Tester is manufactured under various Test Standards ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Available in Various other models like digital model and Digital model with printer facility.
Features:
Presto Instruments is a leading manufacturer and supplier of Bursting Strength Tester Pneumatic Computerized in Bangladesh. For the best price, contact us for a quote or call now!
Clamping Type: Pneumatic (Sample clamp pressure: 2–5 Bar, 3–4 CFM)
Capacity: 40 kg/cm²
Display: 5-inch LCD
Accuracy: ±1% within 10%–90% of full range (as per IS:1828)
Least Count: 0.01 Kg/cm² (Paper), 0.1 Kg/cm² (Board)
Pressure Sensor: Pressure Transducer
Power Supply: 220V, Single Phase, 50 Hz
Motor: 1/4 HP, 1440 rpm
Test Fluid: 98% purified Glycerin (lab grade)
Rate of Fluid Displacement: 95 cc/minute
Test Range: 0.5 – 38 Kg/cm²
Units of Measurement: Kg/cm², MPa (board), KPa (paper), PSI, Bar
Average Value Display: Yes
Sample Results on Display: Up to 12 samples at once
Pass/Fail Criteria: Yes (Minimum and Maximum settable limits)
Safety Switch: Yes
Maintenance Kit: Included
Material: Mild Steel
Finish: Powder-coated Havel Gray & Blue with chrome/zinc plating
Dimensions: 500 × 600 × 443 mm
The balloon burst tester is a lab testing instrument ergonomically created by the Presto to assist the manufacturers from the paper & packaging industry in identifying the seal integrity of the tested material. This packaging testing instrument assesses the seal integrity of pouches and other flexible packaging materials by injecting air into them until the material bursts due to the air pressure acting as a force upon its walls from within.
Read More
The box compression tester is a lab testing instrument designed by the Presto with precision to assess the ability of corrugated boxes to withstand compression. The test is performed by forcing downward pressure on the corrugated box through a motorized platform connected through the circular lead screws for smooth movement.
Read More
In Bangladesh, the packaging as well as textile industries are growing rapidly. For industries that handle materials like paper and cardboard as well as clothes, maintaining quality is considered to be of utmost significance. Otherwise, defective products with a poor bursting strength that fails to carry pressure could result in spoiled goods, more wastage, and unsatisfied customers. This also impacts their quality, which will affect international standards, exports, and even reputation. To keep the industry competitive, it is important to prevent such problems with a powerful testing solution like the Burst Strength Tester Genie 2.0.
Read More
Bangladesh is a supporting sector to several export-oriented industries such as garment textiles, and food products. Reliable edge crush test machines prevent substandard corrugated boxes and paper-based packaging material manufactured. The untested material collapses on pressure due to transportation or stacking leading to damaged goods and increasing complaints of the customer. Poor packaging also blights the image of Bangladeshi exporters and lowers their competition in international markets. Investing in a digital edge crush tester ensures the durability, quality, and satisfaction of customers.
Read More
A drop tester is a device used to evaluate a product’s durability by simulating real-world drops and impacts. It helps assess structural integrity, packaging performance, and overall resilience under controlled test conditions.
Read More
The Peel Tester Computerised Cum Digital is a high-precision testing machine used to measure the peel, bond, and adhesion strength of laminated, sealed, or bonded materials. Designed with advanced digital controls and computer-based software, it provides accurate, consistent, and real-time data for quality assurance.
Read More
With the expansion of Bangladesh's manufacturing and retail sector, products' durability and longevity need to be guaranteed. Packets of any product scuffing along with the surface may go obsolete within no time. With testing devices, like a scuff resistance tester, businesses can come up with products that meet consumers' requirements or standards. Scuffing may result in product defects, increased return rates, and damage a company's reputation, reflecting on both local and global markets.
Read More

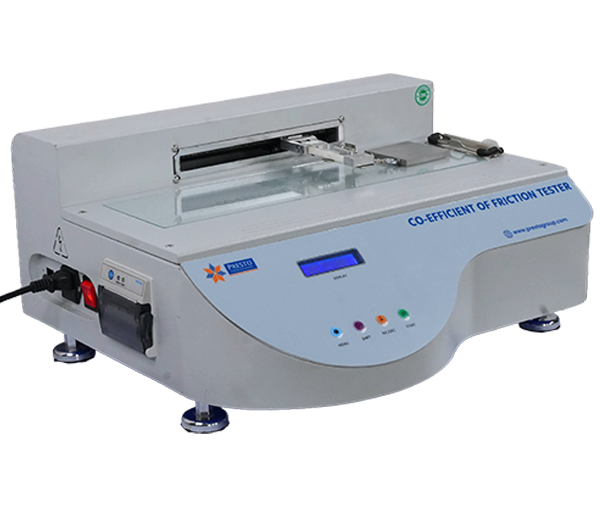

Bangladesh's manufacturing sector is on the boom, in areas ranging from textiles to packaging to car parts. However, an important parameter in determining how good these products are - their quality and performance is friction. If there wasn't a coefficient of friction tester, the manufacturers would not be able to verify their material is slip-resistant, safe, and functional. Products such as packaging films, labels, and even car parts require specific frictional properties to operate properly. An inaccurate friction tester would leave a company with a potential chance of producing faulty products that could result in inefficiency in operation, safety hazards, or failure of products.
