Xenon Test Chamber - PSPL-867

Model : PSPL - 867

Polymer materials can get damaged over time when exposed to outdoor conditions like sunlight, rain, and temperature changes. This affects how long the products last.

To test how long polymers last outside, Presto offers environmental testing machines. These machines can recreate natural weather conditions in a lab. This helps check how products resist sunlight, rain, and other weather effects. It is a cost-effective way to measure polymer quality.

The accelerated weathering test uses two types of light: Xenon lamps and Fluorescent UV lamps. Fluorescent UV lamps create sunlight’s UV rays, but results can sometimes be inconsistent. Xenon lamps are more reliable and can better predict the real-life durability of polymers. They produce steady light that closely matches natural sunlight.

The machine also has a water spray system to simulate rain and dew. It is used in many industries, including automotive, paint and coatings, wood, and plastics.

The instrument comes with a control panel to set temperature, humidity, and light. This allows it to mimic real outdoor conditions that can cause fading, cracking, discoloration, chalking, or flaking in materials.

Presto Instruments is a leading manufacturer and supplier of Xenon Test Chamber - PSPL-867. For the best price, contact us for a quote or call now!

Features & Highlights

Specification

Xenon Lamp: 1.8 KW
Filter: Window Glass or Daylight filter
Lamp Life: Around 3,000 hours
Exposure Area: 2,800 cm²
Adjustable Light Intensity: 0.35 W/m² to 120 W/m²
Black Panel Temperature: RT + 5°C to 80°C
Relative Humidity: 30% to 95% (Spray or Dark mode)
Interior Material: Stainless Steel (SUS 304)
Exterior: Powder-coated finish
Power Supply: 220V, 50/60 Hz

Features:

Simple and easy to operate
Provides accurate and reliable test results
Comes with a user manual and NABL-compliant certificate
Meets national and international standard test methods

Review & Rating

FAQs

What is the Xenon Test Chamber - PSPL-867 used for?

it is used to test the durability of polymers and materials by simulating sunlight, rain, humidity, and other weather conditions in a lab.

What types of lamps does it use?

It uses a 1.8 KW Xenon lamp, along with Window Glass or Daylight filters, to closely replicate natural sunlight.

Can the light intensity and temperature be adjusted?

Yes, light intensity can be adjusted from 0.35 W/m² to 120 W/m², and the black panel temperature ranges from RT + 5°C to 80°C.

What materials are used in the chamber?

The interior is made of stainless steel (SUS 304) and the exterior is powder-coated for durability.

Which industries can use this chamber?

It is suitable for automotive, paint and coatings, plastics, wood, and many other industries to test material durability.

For more details & information

Related Products

Water Wath Digital

The PRESTO Water Bath Digital (Rectangular – Double Walled, Stainless Steel) is a cutting-edge equipment designed for precise temperature control, featuring high-grade corrosion-resistant stainless steel construction both inside and out. Primarily utilized in textile and microbiology industries, it serves to incubate samples in hot water at elevated temperatures.

Cass Cum Salt Spray Chamber

The cass cum salt spray chamber has revolutionized the entire lab testing instrument industry because of its futuristic design and high levels of accuracy. The instrument is designed to aid manufacturers from the automobile, metal, and related industries by evaluating the ability of materials against corrosion and rusting.

Cass Cum Salt Spray Chamber (250 Litres)-Touch Screen

Products made with metals & related materials are extremely prone to rusting & corrosion which makes it necessary for manufacturers to utilise these materials in the production processes to check their durability & longevity.

Ultra low temp freezer

The engineering in the Presto Ultra Low Temperature Deep Freezer comes with precision and innovation. This state-of-the-art freezer has an air-cooled compressor and CFC-free refrigeration systems to achieve quick cooling and ensure perfect air circulation throughout the cabinet.

Zeus Ultimo 3.0 tensile testing machine

Presto's newly launched Zeus Ultimo 3.0 tensile testing machine is a top-quality lab instrument designed to assess the tensile properties of materials. This machine enables manufacturers to test the breaking, tensile, and compression strength of various materials, components, and finished products. It complies with numerous test standards,

Spectrophotometer TP 800

Introducing the TP800 Portable Spectrophotometer, a patented testing machine meticulously designed and manufactured by Testronix. This innovative testing instrument stands out for its exceptional performance stability, precise measurement capabilities, and a range of powerful functions that set the industry standard.

Spectrophotometer TP 3100

A color spectrophotometer is a specialized instrument crafted for precise analysis of physical samples through comprehensive spectrum color measurement. Distinguished by their ability to offer multiple illuminant/observer combinations and operate in various geometric arrangements, color spectrophotometers offer unparalleled flexibility and versatility compared to colorimeters.

Conical Bending Mandrel

The Presto Conical Bending Mandrel is a laboratory device designed to bend coated test panels over a conical mandrel to evaluate the elasticity or resistance of a coating, paint, or varnish. This assessment includes checking for cracking, elongation, and detachment from a metal test panel, adhering to ISO 6860 and ASTM D522 standards.

Salt Spray Chamber - Korrox IV Magnus Series Computerised

To safeguard against corrosion in materials like metals and plated components, conducting a salt spray test is essential. This test evaluates the corrosion resistance of coatings and materials commonly used in products such as fasteners.

Salt Spray Chamber for Corrosion Testing - Korrox III

The Salt Spray Chamber, crafted in accordance with ASTM B117 and JIS 2371 standards, is essential for conducting the Neutral Salt Spray Test (NSS test) on metal surface coatings. It serves to evaluate the coating's resistance to corrosive environments by subjecting specimens to an accelerated salt-laden atmosphere.

Erichsen Cupping Machine Prima

The Cupping Testing Machine is a reliable tool essential for assessing the drawability of sheet metal components and non-ferrous metal sheets. It ensures accurate and consistent testing of adhesion, hardness, and porosity of coatings such as paints or varnish on metal sheets and strips.

Environmental Stress Cracking Resistance - E.S.C.R.

The Environmental Stress Cracking Resistance Tester is a specialized test cabinet designed to evaluate changes in the physical characteristics of plastic materials and determine their actual working life under environmental stress.

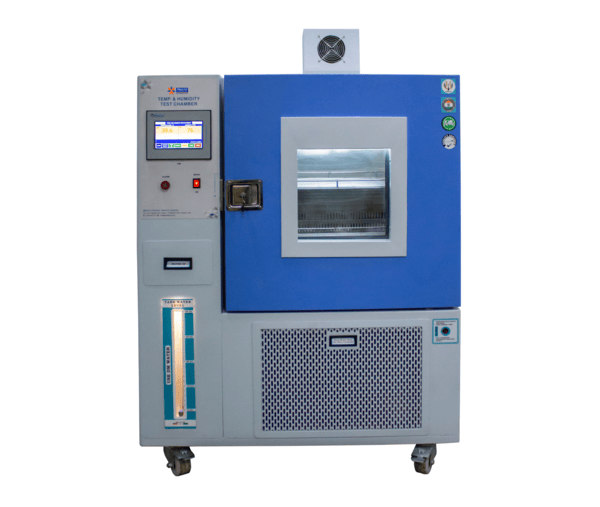

PTH : Environment Programmable Temperature & Humidity Chamber

The Programmable Temperature & Humidity Test Chamber represents the latest in technology for evaluating the behavior and tolerance levels of materials, products, and components under harsh weathering conditions, including temperature and humidity.

Hot Air Oven Prima Series

Presto introduces the cutting-edge Hot Air Oven Prima Series, a top-of-the-line testing equipment engineered to detect changes in the physical properties of materials and determine their operational lifespan under elevated temperatures.

Hot Air Oven

The Hot Air Oven is a specialized testing chamber designed to detect changes in the physical properties of materials and determine their operational lifespan under elevated temperatures.

Hot water bath 1200X 600X600 mm

The Water Bath Digital is a sophisticated testing chamber designed for examining changes or damages in the physical properties of materials and assessing the actual working lifespan of test specimens as temperature increases.

Humidity/Conditioning Chamber

The Humidity/Conditioning Chamber is a specialized test cabinet designed to control temperature and relative humidity within the chamber, allowing for the detection of changes in the physical characteristics of materials and the assessment of the actual working life of testing devices.

Humidity Chamber/Conditioning Chamber Prima (Touch Screen)

The Humidity Chamber - Touch Screen with Data Logger is designed to assess changes in the physical properties of materials under severe environmental conditions, such as varying humidity levels.

Impact Resistance Tester For Paint : Direct

An Impact Resistance Tester for paints is essential for evaluating the durability of painted surfaces under direct impact. This impact strength tester measures how well the paint withstands force, identifying vulnerabilities such as cracking or chipping. By using an impact tester, manufacturers can ensure their paints offer long-lasting protection and can endure physical stress. These testers are widely used in industries like automotive, construction, and packaging to guarantee that paint coatings remain intact during handling and usage. Investing in a reliable impact resistance tester helps improve product quality and meet industry standards for durability and performance.

Impact Resistance Tester for Paint - Indirect

Ideal for assessing the resistance to impact, surface damage, and penetration of construction materials such as plastic, resin, fiberglass, sheet metal, and plywood.

TP310 Portable Color Measurement

TP310 stands as a leading color measurement instrument, trusted across various mainstream industries. Crafted by skilled engineers and scientists, it offers numerous advantages over other international standard color measurement devices.

TP110 Precision Color Measurement

The Farbung TP110 stands out as a widely employed and favored color measurement instrument across various industries. Enhanced with new features by Testronix's proficient team of engineers and scientists,

Bench UV Light Accelerated Weathering Tester (Touch Screen)

The Bench Ultraviolet Light Accelerated Weathering Tester is an affordable and user-friendly machine designed to meet all weathering testing requirements.

UV Light Accelerated Weathering Tester

Polymer products often deteriorate when exposed to various environmental conditions found in the atmosphere, directly impacting their lifespan.

Scratch Hardness Tester - Hand Operated

The Presto Scratch Hardness Tester is an ideal apparatus for assessing the resistance to scratching under a specified load. It is versatile, suitable for a wide range of products including paints, varnishes, and lacquers.

Scratch Hardness Tester - Motorized

Introducing the Presto Scratch Hardness Motorized Tester, a premier apparatus tailored for conducting scratch resistance tests under specified loads.

Haze Meter

The Haze Meter FHM2000 is an advanced testing instrument built to measure haze and light transmittance in transparent materials including plastics, films, glass, and liquids. It is widely used across industries such as packaging, automotive, coatings, and electronics, where transparency and clarity directly influence product performance and customer satisfaction.

Benchtop Spectrophotometer

Benchtop Spectrophotometers provide precise color measurement solutions for industries like textiles, plastics, coatings, and packaging. Designed for accuracy and consistency, they ensure reliable quality control, enabling manufacturers to achieve exact shade matching and maintain product color standards with ease.

Laboratory Hot Air Oven-Touch Screen

The Hot Air Oven – Touch Screen is a modern and reliable testing machine used to check how materials react to different temperatures. It comes with a full touch screen control system, a three-color tower alarm, and advanced safety features. Made with strong stainless steel and mild steel, it ensures long life and low maintenance. The oven provides even heating and stable temperature for accurate testing, making it ideal for rubber, plastic, and other material industries.

Damp Heat Test Chamber for Solar PV Modules

The Damp Heat Test Chamber for Solar PV Modules is engineered to evaluate the long-term resistance of solar panels to high temperature and humidity. It simulates harsh environmental conditions to assess module performance, adhesion, and material stability ensuring compliance with IEC standards and improving product reliability in real-world applications.

Presto Cyclic Test Chamber - CYKO

The Presto Cyclic Test Chamber is designed to help manufacturers in the automotive, paint, plating, and coating industries test how well their materials resist corrosion under different environmental conditions like humidity, condensation, wetting, and air drying. This advanced salt spray test chamber makes it easy to perform reliable corrosion tests such as SWAAT and PROHESION, ensuring product quality and durability at an affordable price.

Xenon Test Chambers - PSPL-866

Presto Xenon 866 is an advanced environmental testing machine that recreates real weather conditions to test the durability of polymers. Using xenon lamps, it simulates sunlight and heat to study how materials react to moisture, temperature, and other climate effects. The PSPL 866 model comes with a control panel to adjust humidity and temperature, helping to detect issues like fading, flaking, chalking, and oxidation. It is a reliable and cost-effective way to measure the quality and lifespan of polymers.

Accelerated Ageing Oven

We provide top-quality Accelerated Ageing Ovens for testing the durability of materials like rubber and plastics. Trusted by industries for accurate results, durability, and competitive pricing.

PTH : Programmable Temperature & Humidity Chamber (-40 to +150)

The Programmable Temperature & Humidity Test Chamber is designed to test how materials and products perform under different temperature and humidity conditions. It helps measure product strength, durability, and quality by creating real-life environmental situations in a controlled setup.

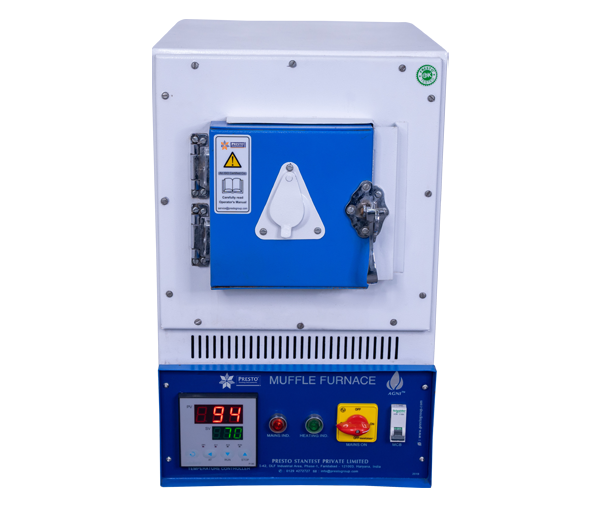

Muffle Furnace
